Brand - McMASTER-CARR
Item Number - 6314K15 McMASTER-CARR

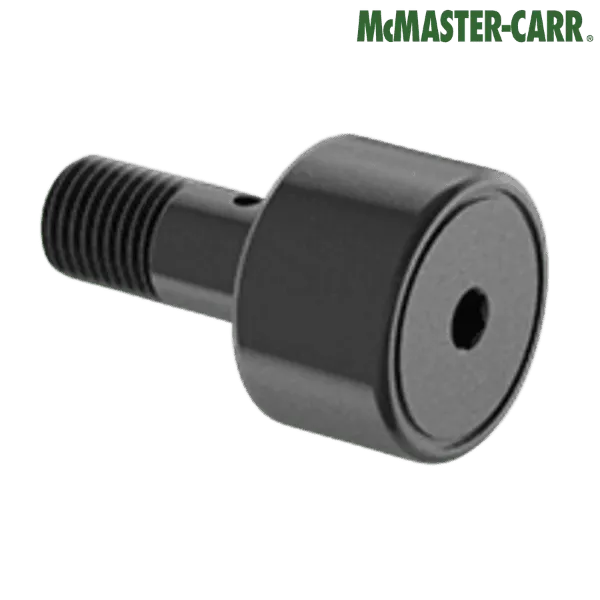

Category - Threaded Track Roller (Steel Flat Rollers with Seal)

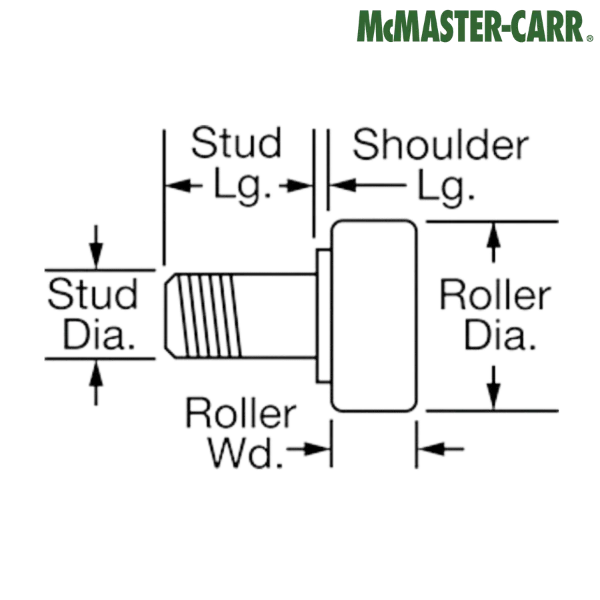

Diameter of Roller (mm) - 12
Width of Roller (mm) - 8
Diameter of Stud (mm) - 4
Length of Stud (mm) - 11
Thread Size - M4
Pitch of Thread (mm) - 0.7
Length of Thread (mm) - 6
Diameter of Shoulder (mm) - 9
Length of Shoulder (mm) - 0.5
Maximum Speed (rpm) - 10000
Radial Static Load Capacity (lbs) - 860
Radial Dynamic Load Capacity (lbs) - 850
Maximum Temperature (°F) - 175°
Inside Bearing Type - Needle Roller
Includes - Mounting Hardware
