Brand - McMASTER-CARR
Item Number - 60135K75 McMASTER-CARR

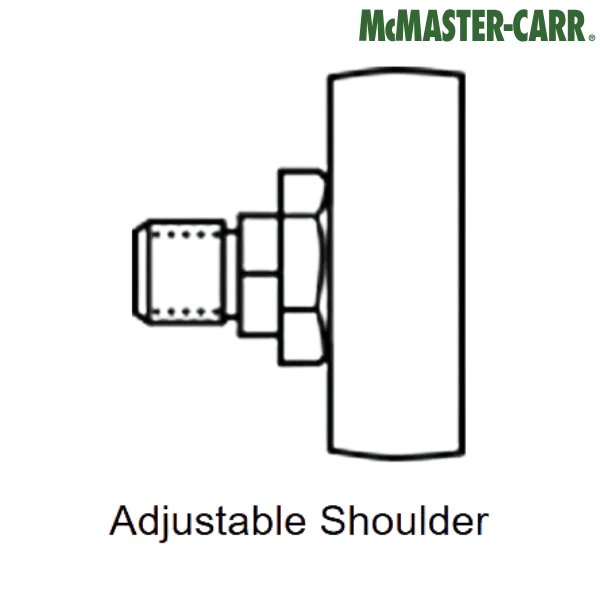

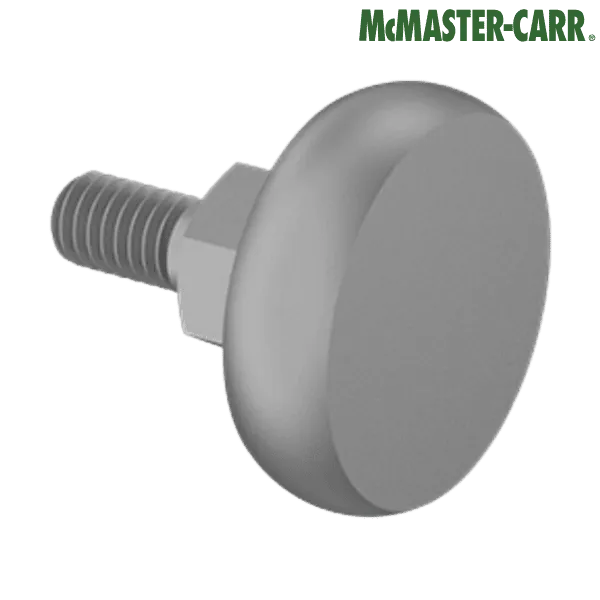

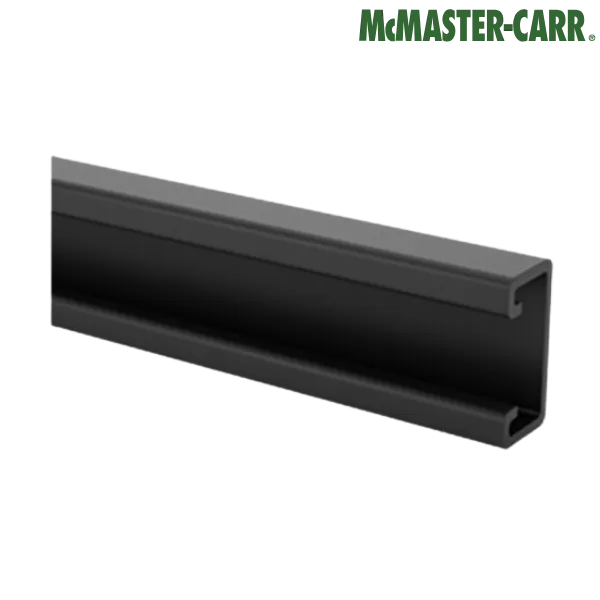

Category - Track Rollers and Guide Rails (Steel Track Rollers with Seal-Anodized Aluminum Guide Rails with Adjustable Shoulder)

Imperial :
For Rail Width (inch) - 1.02
Dynamic Load Capacity (lbs) - 270
Roller Diameter (inch) - 0.77
Roller Width (inch) - 0.31
Hex Width (inch) - 0.47
Shoulder Length (inch) - 0.22
Height Adjustment Capability (inch) - 0.024
Stud Length (inch) - 0.23
Length of Thread (inch) - 0.23
Maximum Temperature (°F) - 210°

Metric :
For Rail Width (mm) - 25.908
Roller Diameter (mm) - 19.558
Roller Width (mm) - 7.874
Hex Width (mm) - 11.938
Shoulder Length (mm) - 5.588
Height Adjustment Capability (mm) - 0.6096
Stud Diameter (mm) - 6
Stud Length (mm) - 5.842
Thread Size (mm) - M6
Pitch Diameter of Thread (mm) - 1
Length of Thread (mm) - 5.842

** Images are for representation purposes only
