Brand - McMASTER-CARR
Item Number - 3689K31 McMASTER-CARR

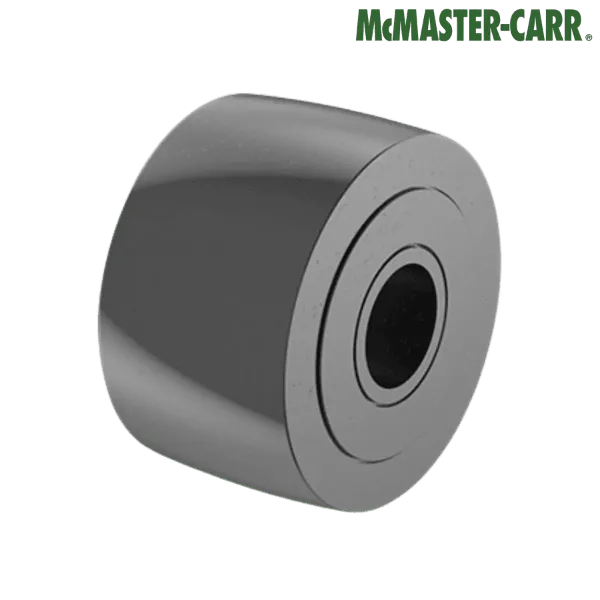

Category - Shaft-Mount Track Rollers (Black-Oxide Steel Crowned Rollers without Seal)

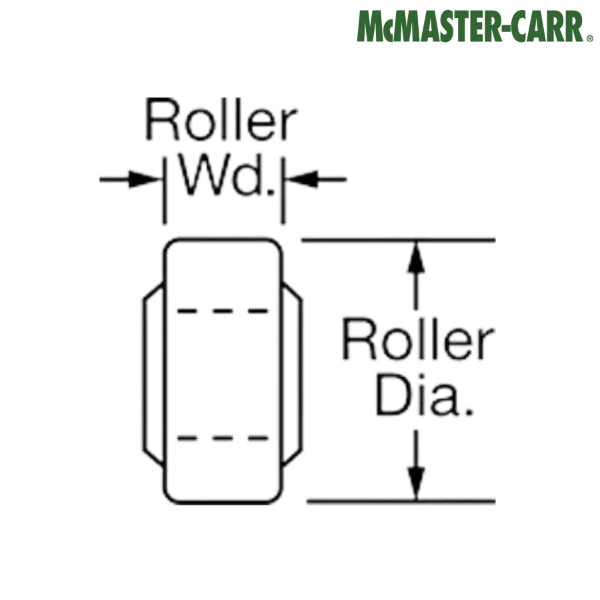

Roller Diameter (inch) - 1.75
Roller Diameter (mm) - 44.45
Roller Width (inch) - 1
Roller Width (mm) - 25.4
For Shaft Diameter (inch) - 0.5
For Shaft Diameter (mm) - 12.7
Overall Width (inch) - 1.0625
Overall Width (mm) - 26.9875
Maximum Speed (rpm) - 2200
Radial Static Load Capacity (lbs) - 14000
Radial Dynamic Load Capacity (lbs) - 6300
Maximum Temperature (°F) - 220°
Bearing Type - Needle Roller
ID (inch) - 0.5
ID (mm) - 12.7
ID Tolerance - -0.0004" to 0.0002"

** Images are for representation purposes only
