3681K27 McMASTER-CARR
3681K27 McMASTER-CARR
  • USA

$ 200.00

$ 100.00

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

Brand - McMASTER-CARR
Item Number - 3681K27 McMASTER-CARR

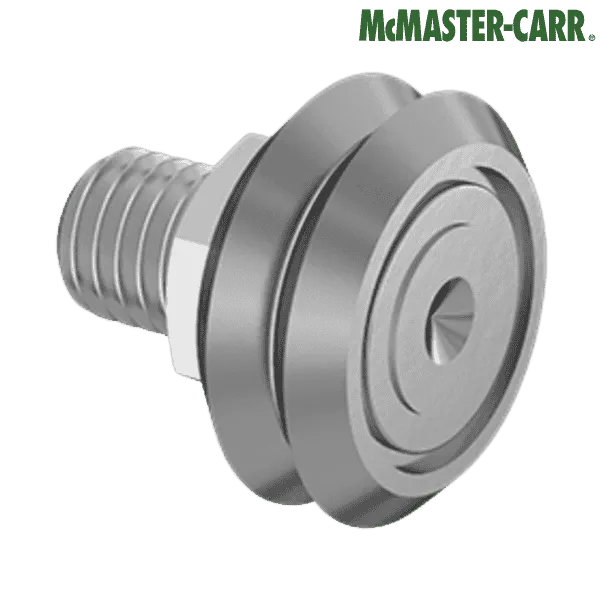

Category - Threaded V-Groove Track Rollers (440C Stainless Steel V-Groove Rollers with Seal)

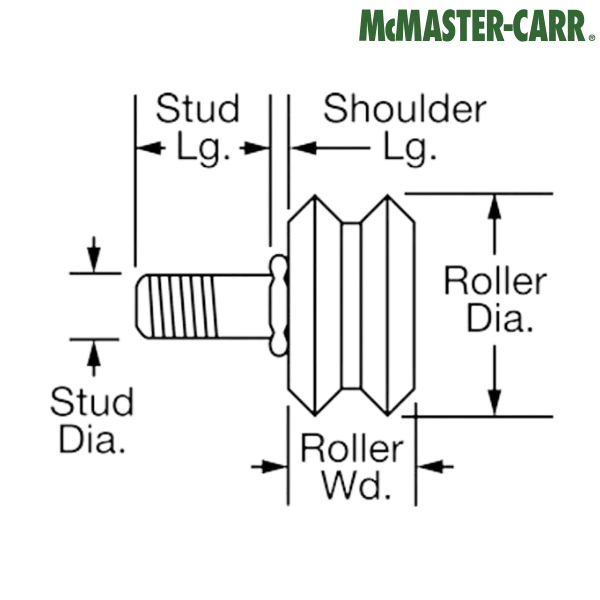

Roller Diameter (mm) - 15
Roller Width (mm) - 6
Stud Diameter (mm) - 4
Stud Length (mm) - 10
Thread Size (mm) - M4
Pitch Diameter of Thread (mm) - 0.7
Length of Thread (mm) - 6
Shoulder Length (mm) - 2
Hex Shoulder Width (mm) - 9.5
Groove Width (mm) - 3
Groove Depth (mm) - 1
Maximum Speed (rpm) - 7000
Radial Static Load Capacity (lbs) - 270
Radial Dynamic Load Capacity (lbs) - 270
Static Thrust Load Capacity (lbs) - 50
Maximum Temperature (°F) - 500°
Inside Bearing Type - Ball Bearing
Includes - Mounting Hardware

** Images are for representation purposes only
