Brand - McMASTER-CARR
Item Number - 3681K24 McMASTER-CARR

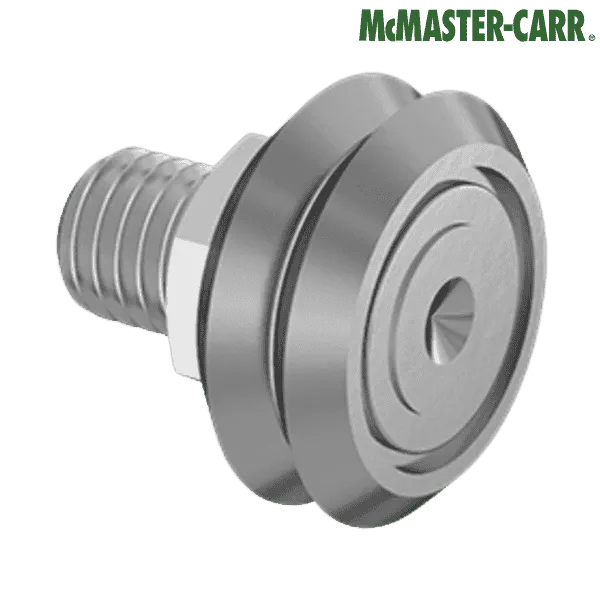

Category - Threaded V-Groove Track Rollers (440C Stainless Steel V-Groove Rollers without Seal)

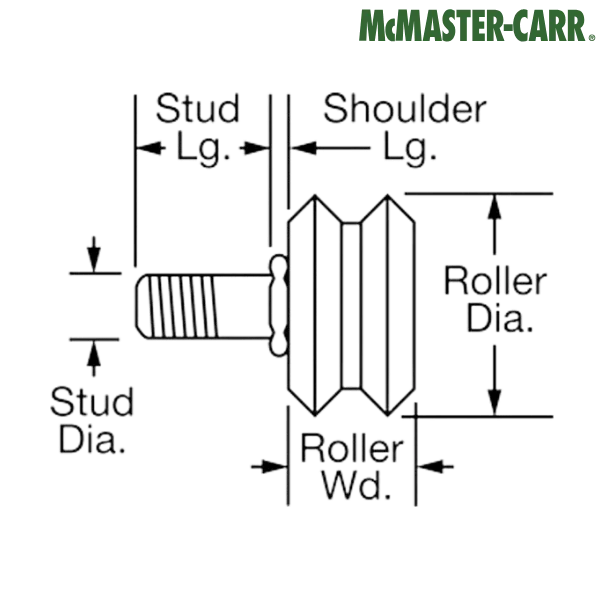

Roller Diameter (mm) - 15
Roller Width (mm) - 6
Stud Diameter (mm) - 6
Stud Length (mm) - 8
Thread Size (mm) - M6
Pitch Diameter of Thread (mm) - 1
Length of Thread (mm) - 7
Shoulder Length (mm) - 2.9
Hex Shoulder Width (mm) - 11
Groove Width (mm) - 3
Groove Depth (mm) - 1
Maximum Speed (rpm) - 1290
Radial Static Load Capacity (lbs) - 6
Radial Dynamic Load Capacity (lbs) - 6
Static Thrust Load Capacity (lbs) - 3
Maximum Temperature (°F) - 245°
Inside Bearing Type - Ball Bearing
Features - Plastic Overmold, Shielded
