Brand - McMASTER-CARR
Item Number - 3643K23 McMASTER-CARR

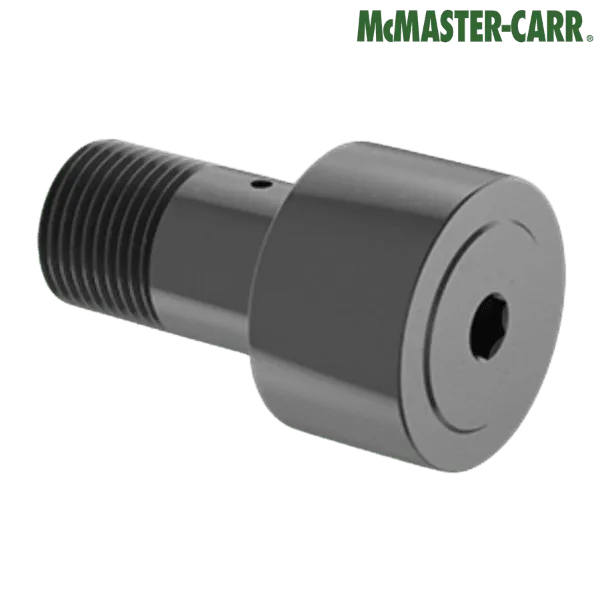

Category - High Load Threaded Track Roller (Black-Oxide Steel Flat Rollers without Seal)
Diameter of Rollers (inch) - 0.625
Diameter of Rollers (mm) - 15.875
Width of Rollers (inch) - 0.4375
Width of Rollers (mm) - 11.1125
Diameter of Stud (inch) - 0.3125
Diameter of Stud (mm) - 7.9375
Length of Stud (inch) - 0.75
Length of Stud (mm) - 19.05
Thread Diameter (inch) - 0.3125
Thread Diameter (mm) - 7.9375
Number of Threads per inch - 24
Thread Length (inch) - 0.3125
Thread Length (mm) - 7.9375
Shoulder Diameter (inch) - 0.4375
Shoulder Diameter (mm) - 11.1125
Shoulder Length (inch) - 0.03125
Shoulder Length (mm) - 0.79375
Maximum Speed (rpm) - 5200
Radial Static Load Capacity (lbs) - 1900
Radial Dynamic Load Capacity (lbs) - 1400
Maximum Temperature (°F) - 245°
Inside Bearing Type - Needle Roller
Includes - Mounting Hardware

** Images are for representation purposes only
