Brand - McMASTER-CARR
Item Number - 1470T636 McMASTER-CARR

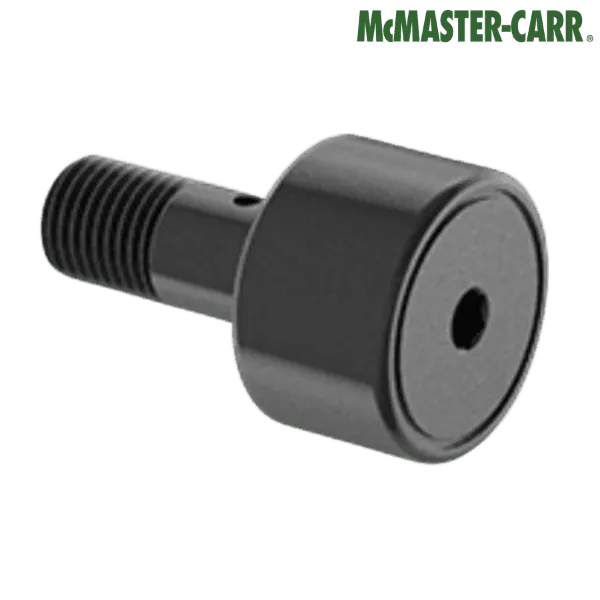

Category - Threaded Track Roller (Black-Oxide Steel Flat Rollers with Seal)

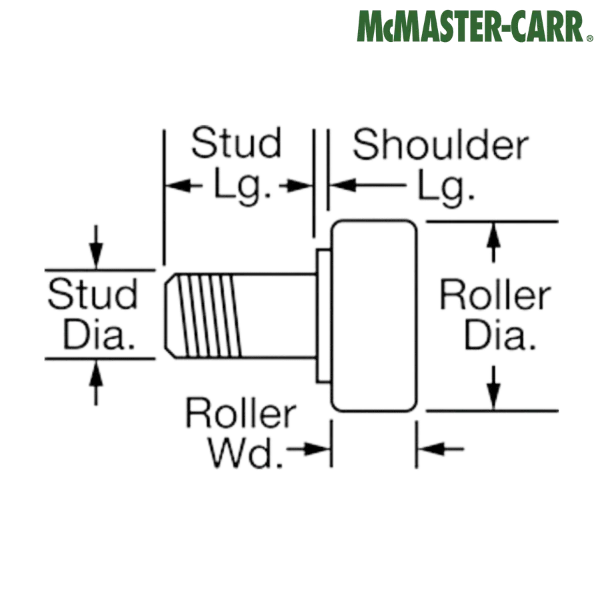

Diameter of Roller (mm) - 52
Width of Roller (mm) - 24
Diameter of Stud (mm) - 20
Length of Stud (mm) - 40.5
Thread Size - M20
Pitch of Thread (mm) - 1.5
Length of Thread (mm) - 21
Diameter of Shoulder (mm) - 36
Length of Shoulder (mm) - 0.8
Maximum Speed (rpm) - 2600
Radial Static Load Capacity (lbs) - 10000
Radial Dynamic Load Capacity (lbs) - 5700
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller

** Images are for representation purposes only
