Brand - McMASTER-CARR
Item Number - 1470T611 McMASTER-CARR

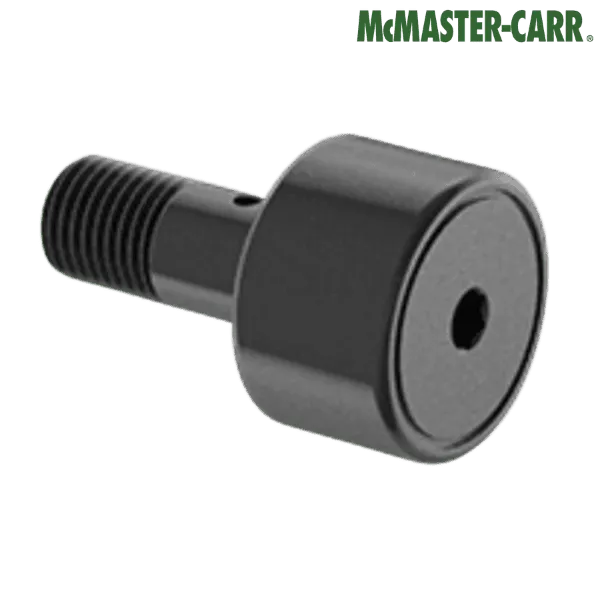

Category - Threaded Track Roller (Black-Oxide Steel Crowned Rollers with Seal)

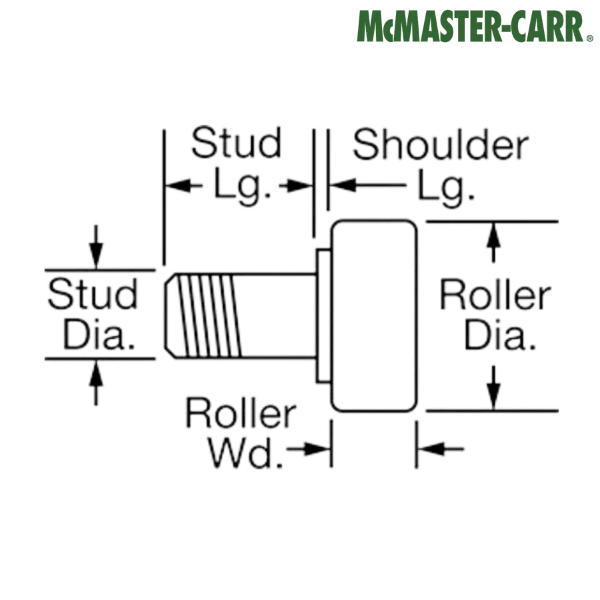

Diameter of Roller (mm) - 16
Width of Roller (mm) - 11
Diameter of Stud (mm) - 6
Length of Stud (mm) - 16
Thread Size - M6
Pitch of Thread (mm) - 1
Length of Thread (mm) - 9
Diameter of Shoulder (mm) - 11
Length of Shoulder (mm) - 0.6
Maximum Speed (rpm) - 13000
Radial Static Load Capacity (lbs) - 500
Radial Dynamic Load Capacity (lbs) - 1300
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller
Roller-Mount Track Lubricators - 4248N12

** Images are for representation purposes only
