Brand - McMASTER-CARR
Item Number - 1460T15 McMASTER-CARR

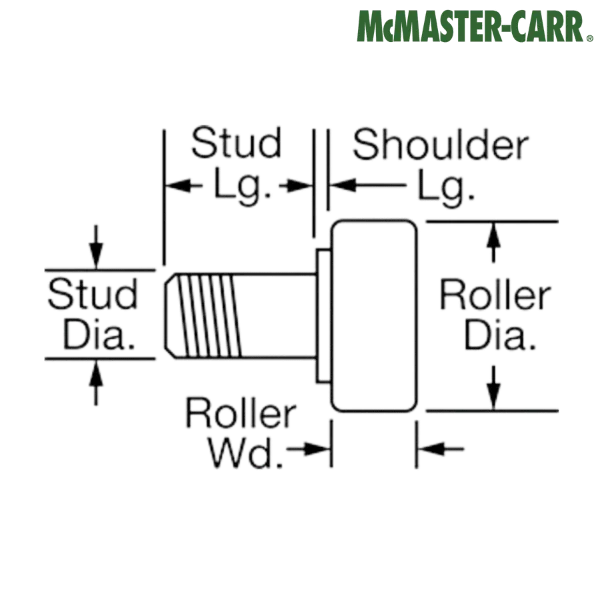

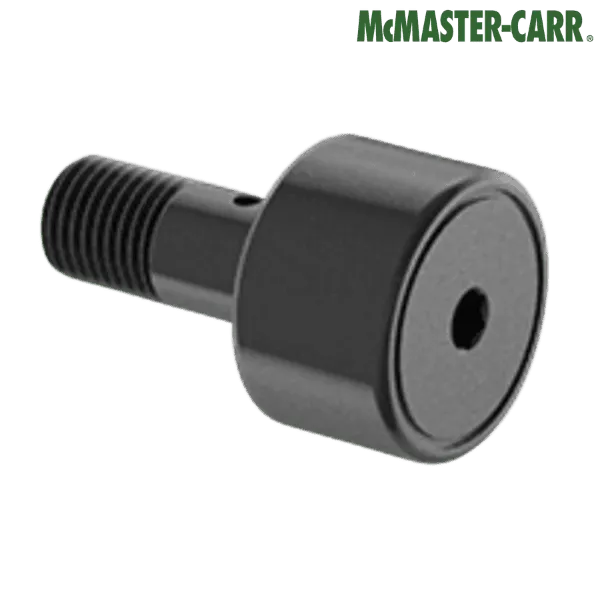

Category - Threaded Track Roller (Black-Oxide Steel Flat Rollers without Seal)
Diameter of Roller (inch) - 0.75
Diameter of Roller (mm) - 19.05
Width of Roller (inch) - 0.5
Width of Roller (mm) - 12.7
Diameter of Stud (inch) - 0.375
Diameter of Stud (mm) - 9.525
Length of Stud (inch) - 0.875
Length of Stud (mm) - 22.225
Diameter of Thread (inch) - 0.375
Diameter of Thread (mm) - 9.525
Number of Threads per inch - 24
Length of Thread (inch) - 0.375
Length of Thread (mm) - 9.525
Diameter of Shoulder (inch) - 0.609375
Diameter of Shoulder (mm) - 15.478125
Shoulder Length (inch) - 0.79375
Shoulder Length (mm) - 20.16125
Maximum Speed (rpm) - 6000
Radial Static Load Capacity (lbs) - 2000
Radial Dynamic Load Capacity (lbs) - 1600
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller
